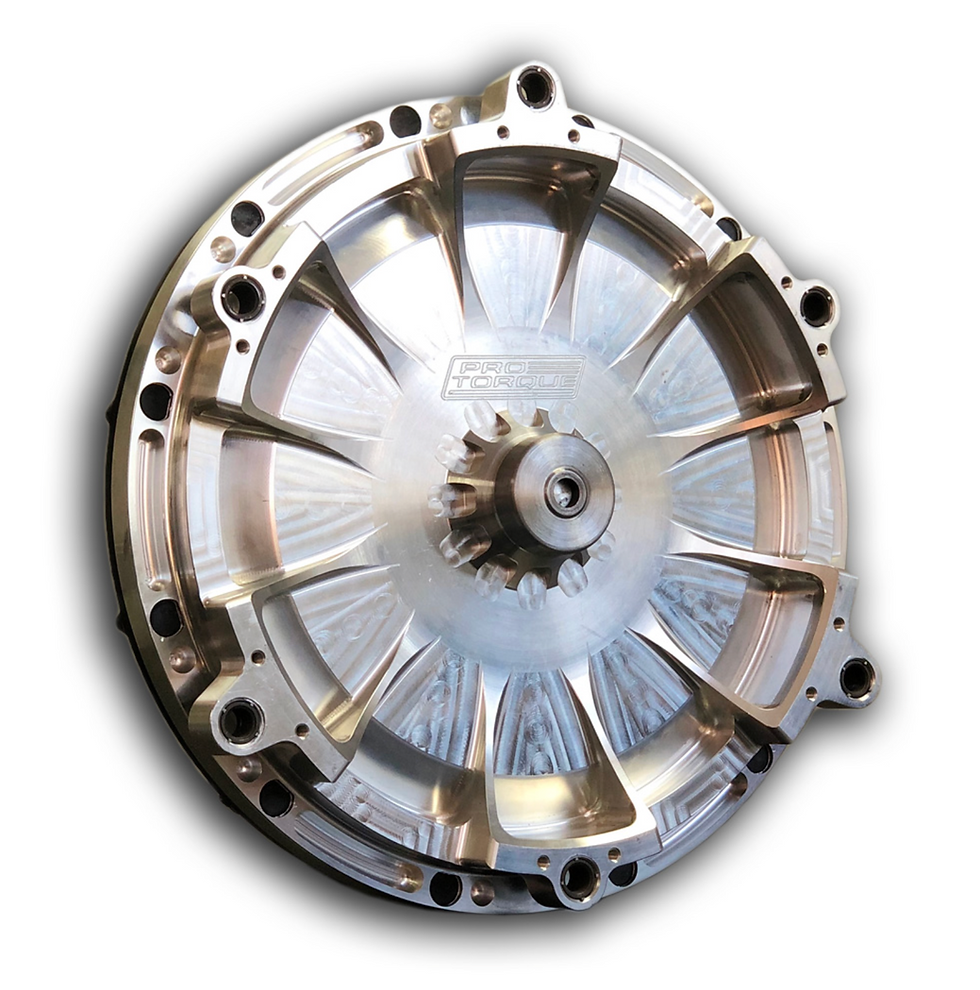

• Lightweight 7075 T6 billet aluminum bolt-together drive cover
• Fully CAD/CAM designed and CNC-machined
• Integral strengthening struts provide extra support in critical areas to prevent flexing or ballooning
• Rotating mass is reduced by removing material from non-critical areas
• Fully radiused to prevent stress risers
• 6 mounting locations to accommodate both large and small bolt pattern flex plates


• 12 custom Aerospace (4340 rolled thread) fastening studs
• “Safe-D” stud technology which are indexed into the aluminum front cover to provide a safe and secure way to keep both halves of the converter in constant compression
• Steel Keenserts provide the safest and strongest method to attach the flex plate to the converter


• Custom billet stators have been CAD/CAM-designed and CNC-machined from solid billet steel or billet aluminum
• 10 strut mechanical diode or spragless configuration
• Many options are available for tunability in specific combinations and conditions
• Future custom stator designs will allow infinite adjustability to fine tune power application
• Allen head jacking bolts provided to ease disassembly

TH350/TH400/Powerglide 27-Spline
